The body and the feeding cylinder are separated and designed for easy installation, operation and maintenance.
The motor adopts three-phase high static pressure induction type, has large conveying capacity, and has a longer service life, eliminating the problem of replacing the carbon brush.
The feeding barrel is made of SUS304 stainless steel to ensure that the raw materials are not polluted and the service life is increased.
The powder feeder filter is made of special materials to ensure no cracking and can be cleaned and reused.
Microcomputer full-featured operation panel adopts Taiwan brand products to ensure more stable performance and longer service life
With adjustable automatic backflushing to ensure smooth filter and extended cleaning cycle
With full material indication, material shortage alarm, motor overload protection device, etc., easy to operate and troubleshoot
When the temperature of the raw material to be conveyed reaches 80 °C or higher, a high-temperature resistant PVC steel wire hose must be selected.
When the raw materials to be conveyed are broken and used more, the additive dust collector must be selected.

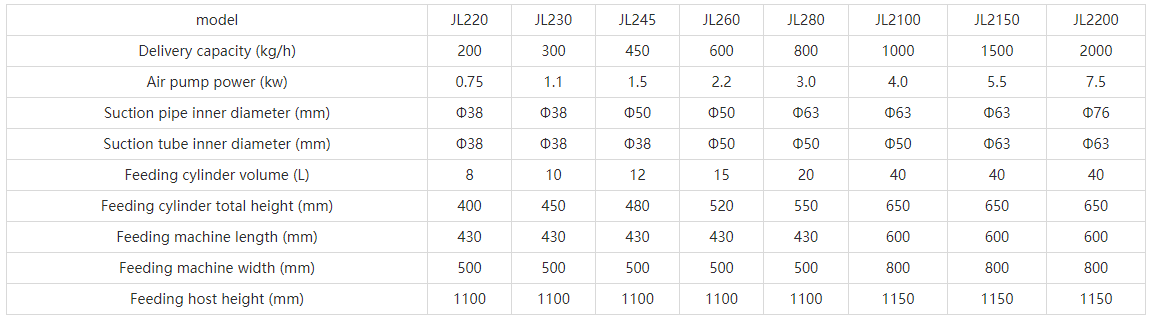

The throughput was measured with PE new pellets at a height of 3.5 meters and a length of 2.5 meters.
The above data is subject to change without notice.
